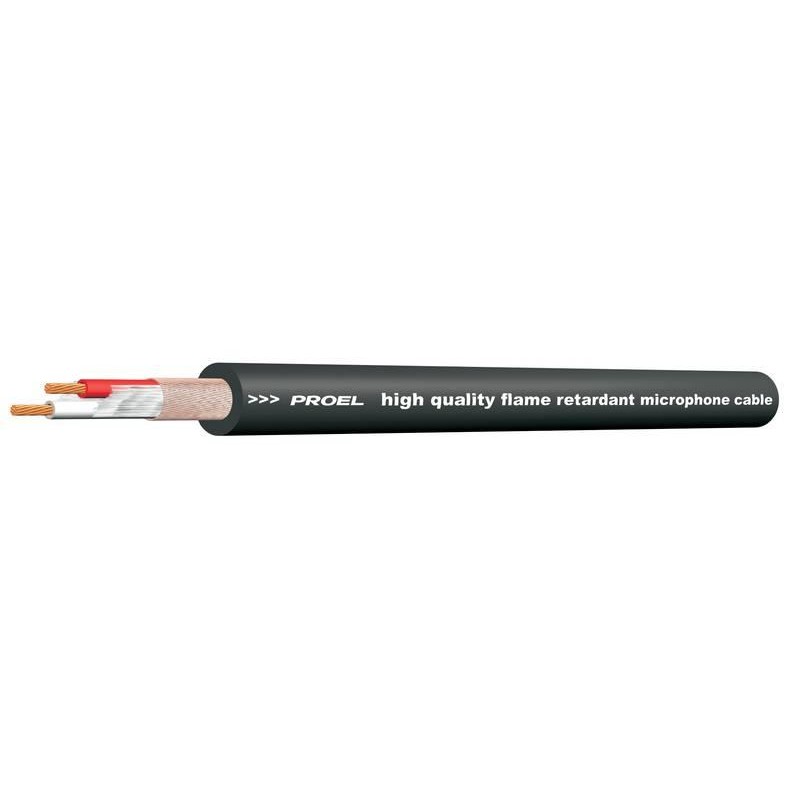

PROEL HPC210 MATASSA CAVO BILANCIATO 100mt

HPC210 MATASSA CAVO BILANCIATO 100MT.

• Application fields: Recording studios / Microphone connections
• Conductors: Bare copper 24 AWG = 30 x 0.10 mm (0.22 mm²)
• Insulation: PE (Compact polyethylene) Ø 1.60 mm - RED/WHITE
• Shield: Spiral copper 16x5x0.10 mm > 90%
• Jacket: Flexible PVC 60 shore Ø 6.50 mm
• Color: Black
• Electrical resistance:
• 93 Ohm/Km (conductor) @ 20°C
• 20 Ohm/Km (shield) @ 20°C
• Electrical capacitance:
• 46 pF/m (conductor/conductor) @ 1 KHz
• 90 pF/m (conductor/shield) @ 1 KHz
• Velocity of propagation: 80 %
• Operating temperature: -20°C / +70°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 46 Kg/Km
• Minumum bending radius: 20 x cable section radius
